How to Create a Perfect Half Bullnose Edge on a Countertop

Creating a high-quality half bullnose edge countertop requires extreme precision and the right tools. When working with stone or composite materials, achieving a smooth, consistent curve is essential. Therefore, you’ll need reliable equipment to prevent chipping and uneven lines.

This guide will provide a detailed walkthrough on how to efficiently profile, grind, and polisha perfect rounded countertop edge. In addition, we’ll introduce the tools best suited for this task, including our highly aggressive electroplated diamond flap discs.

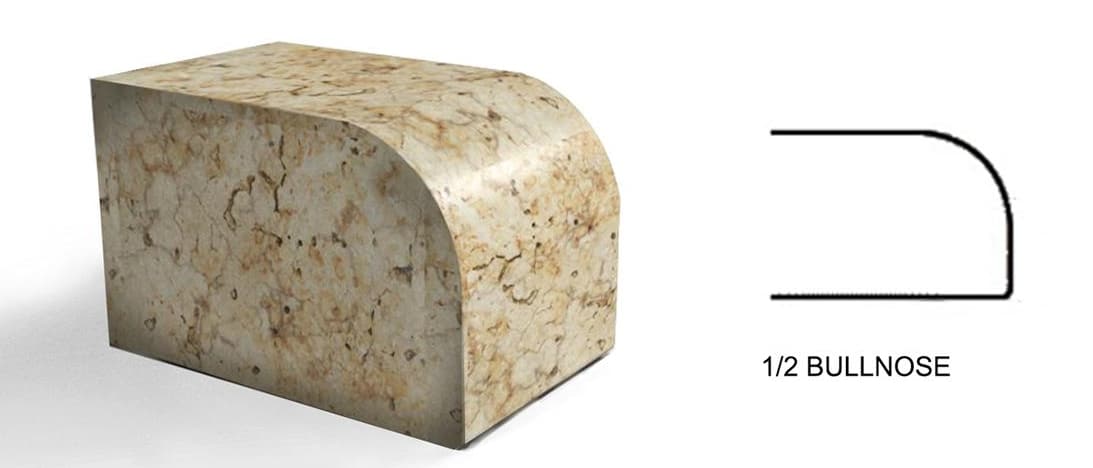

What is a Half Bullnose Edge Countertop

A half bullnose countertop is characterized by a smooth, rounded curve along the top that transitions into a straight bottom edge. As a result, this design highlights the stone’s thickness while providing a comfortable, spill-resistant surface. Fabricators widely use this edge style for quartz, granite, and composite surfaces. As a result, it remains one of the most popular choices in modern kitchen and bathroom design.

Half Bullnose vs. Full Bullnose and Eased Edge

Understanding edge profiles will help you choose the right profiling tools. Below is a brief comparison table to guide your selection.

What Tools are Needed to Create a Half Bullnose Edge

To create a professional half bullnose edge on a countertop, you must use specific diamond tools. Therefore, choosing the right abrasive ensures highly aggressive cutting and maximum efficiency.

Diamond Profile Wheels for Edge Shaping

You must start the process with a diamond profile wheel. This tool quickly removes bulk material to form the basic half bullnose edge profile. Additionally, these wheels attach directly to a wet stone router or angle grinder. They ensure your initial curve perfectly matches the required template.

Diamond Flap Discs for Edge Grinding and Refinement

After completing the initial curve, you’ll need to refine the rough surface. Electroplated diamond flap discs excel in this critical step. These tools quickly smooth out rough grinding marks on the rounded transition. They are ideal for rapid material removal on hard stone and tough composites.

Diamond Polishing Pads for Final Finishing

Finally, you’ll need to use resin bond diamond polishing pads. These flexible polishing pads work through progressive grit sizes to restore the factory shine. As a result, they eliminate microscopic scratches and leave your stone surface perfectly smooth.

How to Grind and Finish a Half Bullnose Countertop Edge

Now that you understand the equipment, follow these structured steps to efficiently carry out the process.

Step 1: Shape the Edge to the Required Profile

First, secure the stone slab firmly to the workbench. Next, install an appropriate diamond profiling wheel on your router or angle grinder. Move the tool smoothly across the stone to create the half bullnose edge countertop. Maintain constant pressure and avoid digging deeply into the material.

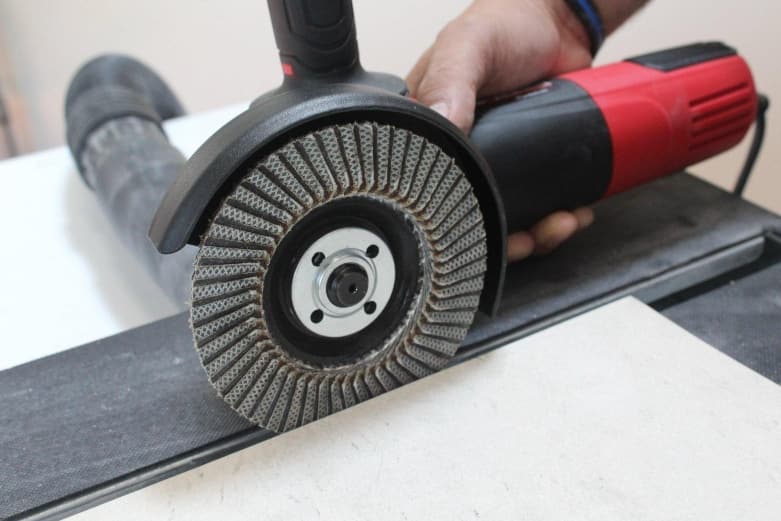

Step 2: Grind and Refine the Rounded Transition

Next, switch to a grinding tool to smooth the freshly cut profile. Using an electroplated diamond flap disc for stone significantly speed up this step. Gently sweep the blade along the curved top edge. This allows you to remove the deep profiling lines very quickly. Our Z-LION flap discs feature 100% exposed diamond grains, ensuring superior heat dissipation and preventing material burn.

Step 3: Polish and Inspect the Finished Edge

Third, begin the polishing stage using water and polishing pads. Start with a coarse 50 grit polishing pad and work up to a 3000 grit pad. Keep the tool moving smoothly along the edge of the countertop. Finally, wipe the edge clean and inspect it under bright light. Carefully check for any remaining scratches or dull spots.

Common Problems When Grinding a Half Bullnose Edge

Manufacturers often face specific challenges during the edge grinding and polishing. Refer to this troubleshooting checklist to quickly resolve common issues.

Uneven Rounded Profiles

An uneven curve is usually caused by inconsistent hand pressure. Alternatively, you may be moving the tool too slowly at a specific location. To resolve this issue, maintain a steady, continuous sweeping motion. Always let the diamond abrasive do the work instead of forcing the stool.

Chipped Edges and Visible Scratches

Chipping often occurs when you use the wrong tool for the stone type. For example, skipping grit sequences while finishing the edges of a quartz countertop can leave deep scratches. Therefore, you must always strictly follow each grit step. Additionally, using high-quality, premium diamond tools minimizes surface tension and chipping.

Dull or Uneven Polished Finishes

A dull finish occurs when you fail to remove scratches left by the previous grit. Furthermore, insufficient water flow during wet grinding can burn the resin pads, dulling the stone. Therefore, you must thoroughly wash the edge between each grit change to prevent cross-contamination.

Conclusion

Creating a flawless half bullnose edge countertop requires expert craftsmanship and high-quality abrasives. By using high-performance shaping wheels and aggressive electroplated grinding tools, you can maximize your production speed.

Ultimately, choosing reliable products reduces your labor time and prevents costly material damage. If you’re looking to upgrade your machining process, browse our extensive catalog of electroplated diamond tools. Get a quote for professional diamond flap discs today and let our experts help you transform your machining efficiency.

FAQs

Can diamond flap discs create a half bullnose edge?

It is difficult to machine the initial profile directly from a straight edge using a diamond flap disc. However, it is an excellent tool for trimming the shape after profiling. You can use it to quickly smooth the rounded transition before final polishing.

What is the best tool for shaping a half bullnose edge?

Brazed or electroplated diamond profile wheels are by far the best tools for initial shaping. They ensure accurate and uniform curves. Afterward, flexible diamond tools provide the best results for subsequent edge roughing and polishing.

Can you make a 1/2 bullnose edge with an angle grinder?

Yes, you can use an angle grinder equipped with a profile wheel to shape the edges. Afterward, you can mount a flap disc and a polishing pad on the same angle grinder to complete the surface finish. However, you must maintain extreme stability to ensure an even profile.

Which abrasive tools are suitable for polishing rounded countertop edges?

Flexible resin bond diamond polishing pads are the most suitable tools for this task. Because they conform easily to curves, they can perfectly polish rounded edges without compromising the machined shape.
